Steel industry
Products

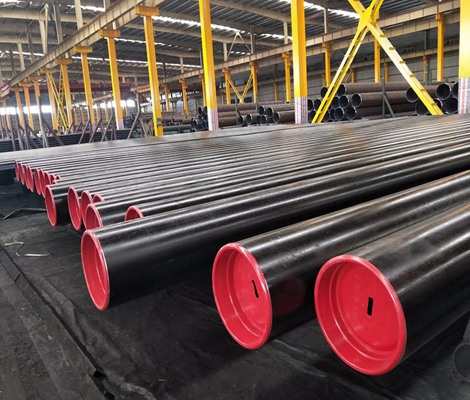

Api 5l psl2 X42 seamless carbon steel pipe
Technique: Hot Rolled
Certification: API
Alloy Or Not: Non-alloy
i
According to different materials and application industries,
the production capacity and particle size range will vary.
Please contact our engineers to customize the equipment for you. Our experts will contact you within 6 hours to discuss your machine and process needs.
Keywords：
Enquiry
sun@sdbaixinxinsteel.com
Product introduction
API 5L X42 pipe also called L290 pipe (by ISO 3183), named by minimum yield strength 42100 Psi or 290 Mpa.
It’s a higher grade than Grade B where API 5L has various grades up to X100, so x42 pipe is an low-medium level,
and it requires large quantities in most of pipelines for oil and gas transmissions.
| Standard | ASTM, DIN, API, GB,ANSI,EN |
| Standard2 | ASTM A53, ASTM A106, DIN 17175, API 5L, GB/T9711 |
| Grade Group | BR/BN/BQ,X42R,X42N,X42Q,X46N,X46Q,X52N,X52Q,X56N,X56Q,X56,X60,X65,X70 |
| Section Shape | Round |
| Technique | Hot Rolled |
| Certification | API |
| Special Pipe | API Pipe |
| Alloy Or Not | Non-alloy |
| Application | Water, Gas, Oil transportation seamless steel line pipe |
| Surface Treatment | Black painting or 3pe,3pp,fbe anti-corrosion coated |
| Thickness | 2.5 - 80 mm |
| Outer Diameter(Round) | 25- 1020mm |
| Product name | Api 5l psl2 x42 seamless carbon steel pipe |
| Keywords | api 5l x42 seamless steel pipe |
| OEM | accept |
| Visit factory | welcomed |
| Section shape | round |
| Length | 5.8-12m |
| Usage | underground water,gas,oil supply steel line pipe |
API 5L X42 PSL2 Pipe – Carbon Steel Pipe features:
The American Petroleum Institute specification API 5L covers seamless and welded steel line pipe.
API 5L, 45th Edition / ISO 3183
This is steel pipe for pipeline transportation systems in the petroleum and natural gas industries
API 5L X42 PSL2 Pipe – Carbon Steel Pipe is suitable for conveying gas, water, and oil.
API 5L X42 PSL2 Pipe – Carbon Steel Pipe, high yield seamless pipes, modified to suit offshore structural purposes.
Suitable for weldable structural steels for fixed offshore structures
As only the edges are heated, the tube possesses dean accurate surface.
Safety is better than smls pipe.
The cost is cheaper than smls pipe and LSAW pipe.
Manufacturing speed is quicker than seamless pipe or sub merged welded pipes.
Technical data
API 5L X42 Pipe Chemical Composition
| API 5L X42 SEAMLESS PIPE | ||||||
| Nb | S | P | Mn | V | C | Ti |
| max | max | maximum | max b | maximum | max b | max. |
| c,d | 0.030 | 0.030 | 1.2 | c,d | 0.28 | d |
Yield strength
| API 5L Grade | Yield Strength min. (ksi) | Tensile Strength min. (ksi) | Yield to Tensile Ratio (max.) | Elongation min. %1 |
| API 5L X42 Pipe | 42 | 60 | 0.93 | 23 |
Application industry
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Specification
-
- Commodity name: Api 5l psl2 X42 seamless carbon steel pipe
<strong> Section Shape:</strong> Round<br> <strong> Technique:</strong> Hot Rolled<br> <strong> Certification:</strong> API<br> <strong> Alloy Or Not:</strong> Non-alloy<br>
Product introduction
API 5L X42 pipe also called L290 pipe (by ISO 3183), named by minimum yield strength 42100 Psi or 290 Mpa.
It’s a higher grade than Grade B where API 5L has various grades up to X100, so x42 pipe is an low-medium level,
and it requires large quantities in most of pipelines for oil and gas transmissions.Standard ASTM, DIN, API, GB,ANSI,EN Standard2 ASTM A53, ASTM A106, DIN 17175, API 5L, GB/T9711 Grade Group BR/BN/BQ,X42R,X42N,X42Q,X46N,X46Q,X52N,X52Q,X56N,X56Q,X56,X60,X65,X70 Section Shape Round Technique Hot Rolled Certification API Special Pipe API Pipe Alloy Or Not Non-alloy Application Water, Gas, Oil transportation seamless steel line pipe Surface Treatment Black painting or 3pe,3pp,fbe anti-corrosion coated Thickness 2.5 - 80 mm Outer Diameter(Round) 25- 1020mm Product name Api 5l psl2 x42 seamless carbon steel pipe Keywords api 5l x42 seamless steel pipe OEM accept Visit factory welcomed Section shape round Length 5.8-12m Usage underground water,gas,oil supply steel line pipe
API 5L X42 PSL2 Pipe – Carbon Steel Pipe features:The American Petroleum Institute specification API 5L covers seamless and welded steel line pipe.
API 5L, 45th Edition / ISO 3183
This is steel pipe for pipeline transportation systems in the petroleum and natural gas industries
API 5L X42 PSL2 Pipe – Carbon Steel Pipe is suitable for conveying gas, water, and oil.
API 5L X42 PSL2 Pipe – Carbon Steel Pipe, high yield seamless pipes, modified to suit offshore structural purposes.
Suitable for weldable structural steels for fixed offshore structures
As only the edges are heated, the tube possesses dean accurate surface.
Safety is better than smls pipe.
The cost is cheaper than smls pipe and LSAW pipe.
Manufacturing speed is quicker than seamless pipe or sub merged welded pipes.Technical data
API 5L X42 Pipe Chemical Composition
API 5L X42 SEAMLESS PIPE Nb S P Mn V C Ti max max maximum max b maximum max b max. c,d 0.030 0.030 1.2 c,d 0.28 d Yield strength
API 5L Grade Yield Strength min. (ksi) Tensile Strength min. (ksi) Yield to Tensile Ratio (max.) Elongation min. %1 API 5L X42 Pipe 42 60 0.93 23 Key words:- Api 5l psl2 X42 seamless carbon steel pipe
Relevant Items

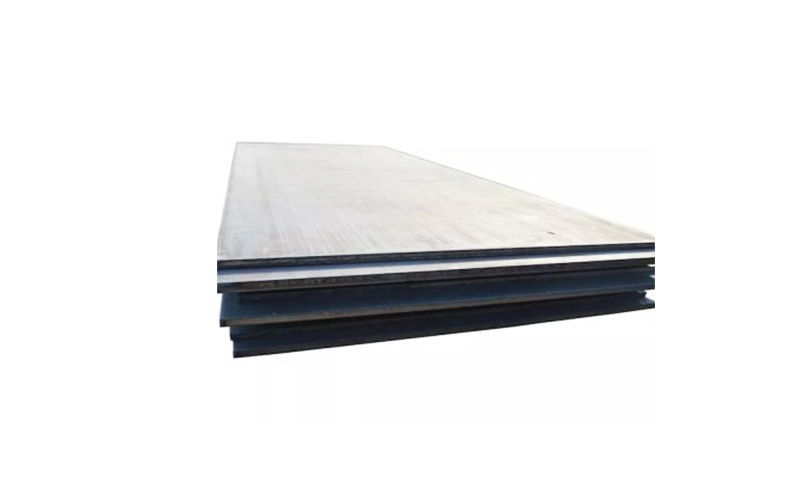

CCS AH40 DH40 EH40 FH40 Marine Steel Plate
