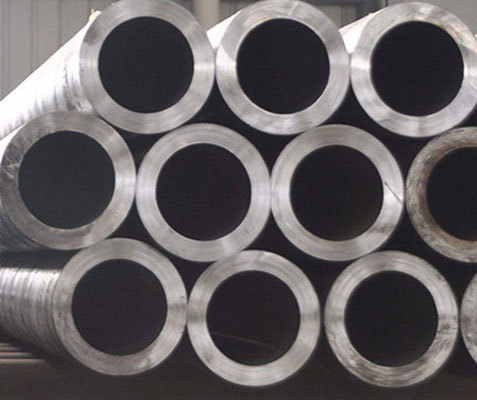

ASME SA192 Seamless Boiler Pipe for heat exchanger
Grades: A192 Grade Tubes and Tubing
Type: Seamless – Hot Rolled / Cold Drawn
Outer Diameter Size: 1/4" NB To 2" NB (Nominal Bore Size)
i
According to different materials and application industries,
the production capacity and particle size range will vary.
Please contact our engineers to customize the equipment for you. Our experts will contact you within 6 hours to discuss your machine and process needs.
Keywords：
Enquiry
sun@sdbaixinxinsteel.com
Product introduction
ASME SA192 Seamless Boiler Pipe for heat exchanger Specification
This guide covers standard specifications for minimum-wall-thickness, seamless carbon steel boiler and superheater tubes for high-pressure service. The steel shall conform to the required chemical composition for carbon, manganese, phosphorus, sulfur, and silicon. The tubes shall have a hardness number not exceeding a specific value. The following mechanical tests shall be conducted, namely: flattening test; flaring test; hardness test; and hydrostatic test.
1.This specification covers minimum-wall-thickness, seamless carbon steel boiler and superheater tubes for high-pressure service.
2.SA192 Boiler Tubes sizes and thicknesses usually furnished to this specification are 1/2 in. to 7 in. [12.7 to 177.8 mm] outside diameter and 0.085 to 1.000 in. [2.2 to 25.4 mm], inclusive, in minimum wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.
3.Mechanical property requirements do not apply to tubing smaller than 1/8 in. [3.2 mm] inside diameter or 0.015 in. [0.4 mm] thickness.
| A192 Tubes Specification | ASTM A192 / ASME SA192 |
| A192 Tubes Grades | A192 Grade Tubes and Tubing |
| A192 Tubes Type | Seamless – Hot Rolled / Cold Drawn |
| A192 Tubes Outer Diameter Size | 1/4" NB To 2" NB (Nominal Bore Size) |
| A192 Tubes Wall Thickness | 1 mm Thickness to 8 mm Thickness |
| A192 Tubes Length |
5800mm; 6000mm; 6096mm; 7315mm; 11800mm; and so on. Max length: 27000mm, also U bending can be offered. |
| A192 Tubes Ends | Plain Ends / Beveled Ends / Coupling |
| A192 Tubes Delivery Conditions | As Rolled, Cold Drawn, Normalizing Rolled |
| A192 Tubes Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
| A192 Tubes Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. |
| A192 Tubes Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
Dimension And Wall Thickness Tolerances(SA-450/SA-450M):
|
OD In (mm) |
+ |
- |
WT In(mm) |
+ |
- |
|
< 1(25.4) |
0.10 |
0.10 |
≤ 1.1/2(38.1) |
20% |
0 |
|
1 to 1.1/2(25.4 to38.1) |
0.15 |
0.15 |
> 1.1/2(38.1) |
22% |
0 |
|
> 1.1/2 to<2(38.1 to 50.8) |
0.20 |
0.20 |
|||
|
2 to < 2.1/2(50.8to 63.5) |
0.25 |
0.25 |
|||
|
2.1/2 to < 3(63.5to 76.2) |
0.30 |
0.30 |
|||
|
3 to 4(76.2 to 101.6) |
0.38 |
0.38 |
|||
|
> 4 to 7.1/2(101.6to 190.5) |
0.38 |
0.64 |
|||
|
> 7.1/2 to 9(190.5to 228.6) |
0.38 |
1.14 |
Hardness:
|
Brinell HardnessNumber |
Rockwell HardnessNumber |
|
137HRB |
77HRB |
Technical data
Chemical Composition
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
| 0.06-0.18 | max 0.25 | 0.27-0.63 | 0.035 | 0.035 | – | – | – | – | – |
ASTM A192 seamless carbon steel pipe Mechanical properties
| Yield | Tensile | Elongation A5 min | |||
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 325 | – | 47 | 35 | ||
Outside Diameter & Tolerance
| Outside Diameter, mm | Tolerance, mm |
| 3.2≤OD＜25.4 | ±0.10 |
| 25.4≤OD≤38.1 | ±0.15 |
| 38.1＜OD＜50.8 | ±0.20 |
| 50.8≤OD＜63.5 | ±0.25 |
| 63.5≤OD＜76.2 | ±0.30 |
| 76.2 | ±0.38 |
Wall Thickness
| Outside Diamter, mm | Tolerance, % |
| 3.2≤OD＜38.1 | +20/-0 |
| 38.1≤OD≤76.2 | +22/-0 |
Application industry
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. For customers to buy. The products sell well all over the country and are exported to more than 50 countries including the European Union, the United States, Australia, Southeast Asia, and the Middle East. They are widely used in the Three Gorges Project, Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, and China (Hong Kong) Gas International Co., Ltd. natural gas transformation Project, Jinjin Expressway and many other national key projects.
Specification
-
- Commodity name: ASME SA192 Seamless Boiler Pipe for heat exchanger
<strong>Specification: </strong>ASTM A192 / ASME SA192<br> <strong>Grades: </strong>A192 Grade Tubes and Tubing<br> <strong>Type: </strong>Seamless – Hot Rolled / Cold Drawn<br> <strong>Outer Diameter Size: </strong>1/4" NB To 2" NB (Nominal Bore Size)<br>
Product introduction
ASME SA192 Seamless Boiler Pipe for heat exchanger Specification
This guide covers standard specifications for minimum-wall-thickness, seamless carbon steel boiler and superheater tubes for high-pressure service. The steel shall conform to the required chemical composition for carbon, manganese, phosphorus, sulfur, and silicon. The tubes shall have a hardness number not exceeding a specific value. The following mechanical tests shall be conducted, namely: flattening test; flaring test; hardness test; and hydrostatic test.
1.This specification covers minimum-wall-thickness, seamless carbon steel boiler and superheater tubes for high-pressure service.
2.SA192 Boiler Tubes sizes and thicknesses usually furnished to this specification are 1/2 in. to 7 in. [12.7 to 177.8 mm] outside diameter and 0.085 to 1.000 in. [2.2 to 25.4 mm], inclusive, in minimum wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.
3.Mechanical property requirements do not apply to tubing smaller than 1/8 in. [3.2 mm] inside diameter or 0.015 in. [0.4 mm] thickness.
A192 Tubes Specification ASTM A192 / ASME SA192 A192 Tubes Grades A192 Grade Tubes and Tubing A192 Tubes Type Seamless – Hot Rolled / Cold Drawn A192 Tubes Outer Diameter Size 1/4" NB To 2" NB (Nominal Bore Size) A192 Tubes Wall Thickness 1 mm Thickness to 8 mm Thickness A192 Tubes Length 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; and so on. Max length: 27000mm, also U bending can be offered.
A192 Tubes Ends Plain Ends / Beveled Ends / Coupling A192 Tubes Delivery Conditions As Rolled, Cold Drawn, Normalizing Rolled A192 Tubes Coating Epoxy Coating / Colour Paint Coating / 3LPE Coating. A192 Tubes Other Testing NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. A192 Tubes Dimension All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
Dimension And Wall Thickness Tolerances(SA-450/SA-450M):OD In (mm)
+
-
WT In(mm)
+
-
< 1(25.4)
0.10
0.10
≤ 1.1/2(38.1)
20%
0
1 to 1.1/2(25.4 to38.1)
0.15
0.15
> 1.1/2(38.1)
22%
0
> 1.1/2 to<2(38.1 to 50.8)
0.20
0.20
2 to < 2.1/2(50.8to 63.5)
0.25
0.25
2.1/2 to < 3(63.5to 76.2)
0.30
0.30
3 to 4(76.2 to 101.6)
0.38
0.38
> 4 to 7.1/2(101.6to 190.5)
0.38
0.64
> 7.1/2 to 9(190.5to 228.6)
0.38
1.14
Hardness:
Brinell HardnessNumber
(WT≥) 0.200In ( 5.1mm )Rockwell HardnessNumber
(WT≥) 0.200In(5.1mm )137HRB
77HRB
Technical data
Chemical Composition
Carbon Silicon Manganese Phosphorous Sulphur Molybdenum Nickel Chromium Copper Others 0.06-0.18 max 0.25 0.27-0.63 0.035 0.035 – – – – – ASTM A192 seamless carbon steel pipe Mechanical properties
Yield Tensile Elongation A5 min MPa min ksi min MPa min MPa min ksi min Percentage 325 – 47 35 Outside Diameter & Tolerance
Outside Diameter, mm Tolerance, mm 3.2≤OD＜25.4 ±0.10 25.4≤OD≤38.1 ±0.15 38.1＜OD＜50.8 ±0.20 50.8≤OD＜63.5 ±0.25 63.5≤OD＜76.2 ±0.30 76.2 ±0.38 Wall Thickness
Outside Diamter, mm Tolerance, % 3.2≤OD＜38.1 +20/-0 38.1≤OD≤76.2 +22/-0 Key words:- ASME SA192 Seamless Boiler Pipe for heat exchanger
